SEMV™ Trays |
| AMACS patented high capacity mini-valve trays are particularly useful in the revamp of conventional tray towers for more vapor handling capacity. For new construction, this technology can be applied to minimize the diameter of new towers. This technology is available with floating or fixed valves. Well-designed floating SEMV valve tray can achieve a 10:1 turndown ratio while a fixed SEMV valve tray can achieve 3:1 turndown ratio. |
AG-0 Fixed Mini-Valve Trays |
| The AMACS AG-0 Fixed Valve tray is another option for upgrading conventional tray towers for more vapor capacity. It can also be used to minimize the diameter of new towers. The turndown ratio of the AG-0 Trays is 3:1. |
Montz Thormann® Trays |
| The Montz Thormann® tray is a patented device that has been developed specifically for washing processes and vacuum distillation. This uniquely designed tunnel cap tray handles even the lowest liquid flows (40 l/m 2 /h with a simultaneous small pressure drop of approximately 1 mbar per tray). |
 |
 |
 |
|

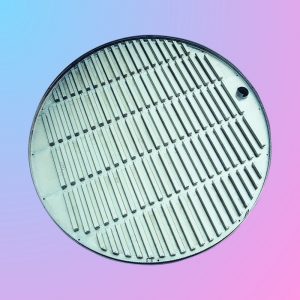

Thormann® tray DN 3400 mm, one piece, made of titanium.This tray is of a leakproof design and is intended for use in an HCI-absorption column made of GRP. |

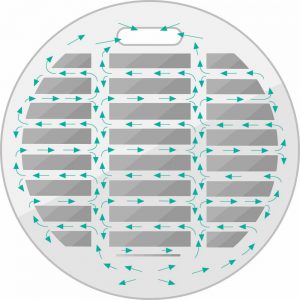

The arrangement of the caps combined with the special vapor slots ensures a controlled flow of the liquid on the tray and consequently a favourable hold-up time and a high separation efficiency. |
Thormann® caps with the characteristic vapor slots for a controlled vapor flow into the liquid. |
| Features: |
- Suitable for low liquid loads (approx.40 l/m 2 /h)
- No trickling down of the liquid
- Extremely low pressure drop of approx. 1 mbar per tray (is possible)
- Extremely high tray efficiency
- High flexibility Leakproof tray design (e.g.for washing processes)
- Customised designs for special applications
Applications:
- Washing processes, for example caprolactam, HCI, H 2 S
- Hold-up time trays for reactions
- Natural gas drying
- Fractionating of fatty acids
- Rectisol washing process
